Features

▇ Ultra transparent flexible LED mesh screen - M6, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.
LED mesh screen



▇ High transparency maximizes the natural light get inside of the building, M6 soft led display also ensuring the screen has great ventilation and wind-resistance function.
led mesh



▇  Fast inter-panel locks make installation quick and easy especially for a large-sized screen.
led mesh curtain display



▇ Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.
transparent led mesh



▇ Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient.
soft led mesh



▇ Head and tail of the panel with waterproof connectors. LED mesh screen connector



▇  Flexible LED mesh screen M6 aging test picture.


led mesh screen, soft led display








LED Mesh Screen M6 Project by Torchvisual


▇ The project of LED mesh screen M6 series.

transparent LED mesh curtain display project in Spain

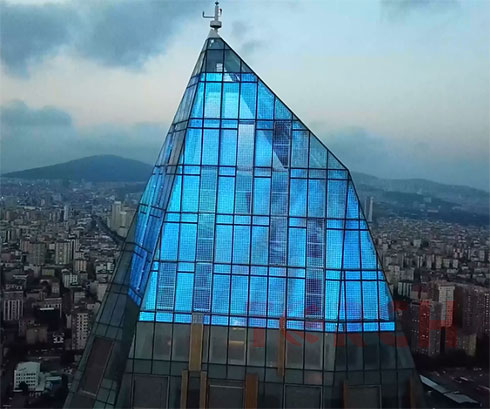

 The project of LED mesh screen M6 series, Allianz Tower, Turkey, 800SQM


led curtain wall project in Turkey by Torchvisual  led mesh curtain case in Turkey, Allianz Tower, by Torchvisual











 The project of flexible LED mesh screen M6 series, LED Tunnel, Jordan, 210meter.



led mesh lighting  in Jordan, by Torchvisual  LED canopy arch curtain lighting in Jordan, by Torchvisual  architect lighting led mesh curtain in Jordan, By torchvisual



Specifications

LED mesh screen - M6 Specifications
    Model Name
    M6
    Pixel Pitch
    37.5mm / 56.25mm / 75mm (pixel pitch can also be customized)
    Pixel Configuration
    6*SMD3535
    Panel Size
    0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m  (Size can be customized)
    0.98' x  15.75' / 1.48' x 23.62' / 1.97' x 31.50'
    Brightness
    7200nits/ 5100nits /2400nits  (Nationstar SMD3535)
    Transparency Rate
    55% / 75% / 85%
    Weight
    10.5 kg/sqm;  5.5 kg/sqm; 3.5 kg/sqm
    23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
    IP Rating(Front/Rear)
    IP66
    Refresh Rate
    1000 Hz
    Scan Mode
    Static
    Max Power Consumption
    600 W/sqm; 400 W/sqm ; 250 W/sqm
    Color Processing
    16 bit
    Viewing Angle(H/V)
    140°/110°
    Operating Temperature
    -40~45°C
    Main Power Source
    AC 100-240V; 50/60Hz
    Input Voltage
    24V DC
    Humidity
    10~90%RH
    Life Time
    100,000 Hours

Accesories

▇ Video Controller
led mesh screen controller

▇ Slave Controller


▇ Power Box
led mesh power box

▇ Flightcase
led mesh screen package

▇ Wiring Diagram

led mesh screen diagram
