Features

▇  Ultra flexible LED mesh curtain display M4, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.
flexible led curtain



▇ High transparency maximizes the natural light get inside of the building, flexible LED mesh screen also ensuring the screen has great ventilation and wind-resistance function.
led curtain display



▇ Fast inter-panel locks make installation quick and easy especially for a large-sized screen.
led pixel curtain

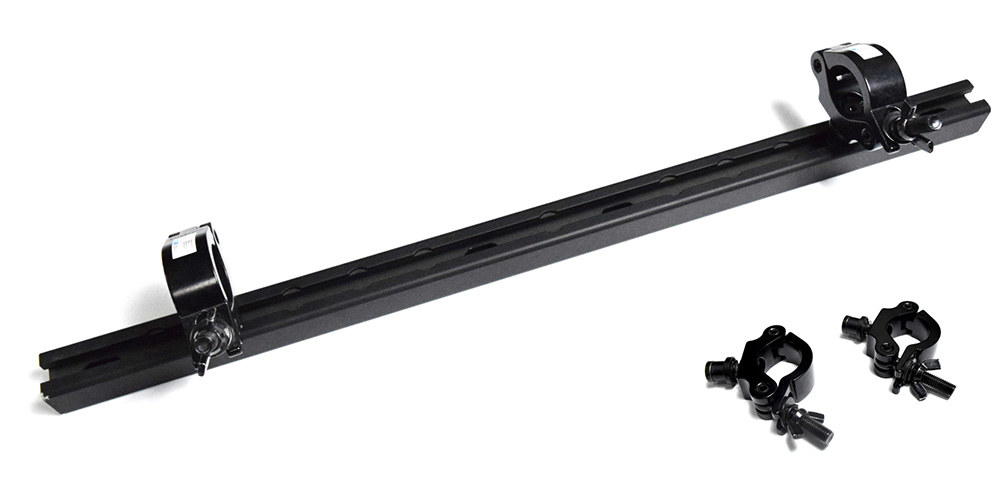

▇ Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.
led video curtain



▇ Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient.
video curtain

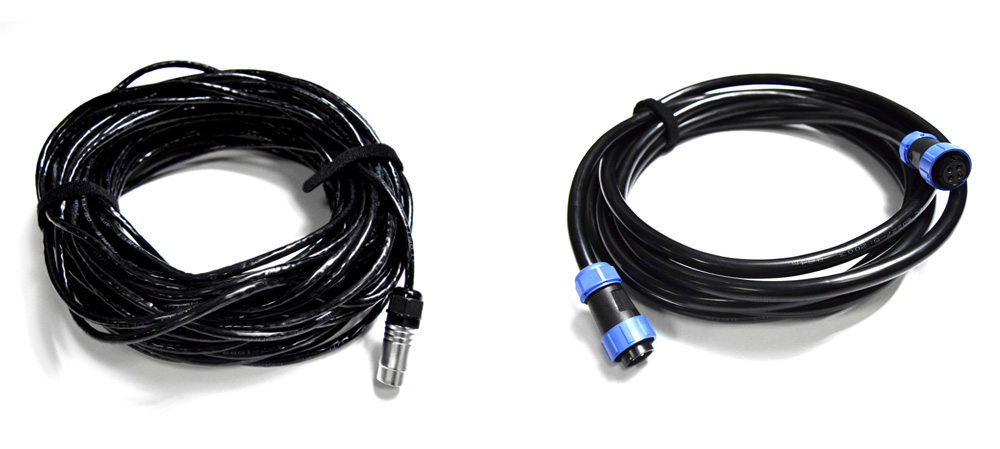

▇  Head and tail of the panel with waterproof connectors.
led curtain connection

transparent led curtain


▇  Flexible LED curtain M4 aging test picture and video.


flexible led mesh curtain









Flexible LED Curtain M4 Project by Torchvisual

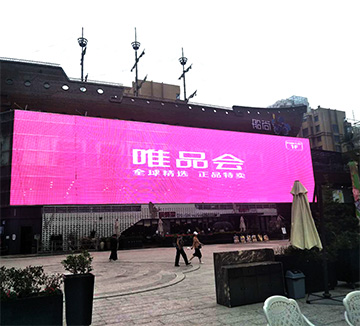

▇  M4 flexible led mesh curtain application project in Hongkong.


flexible LED mesh curtain project




▇  Torchvisual M4 flexible LED mesh curtain application project in Nike Town, UK, 60㎡.


flexible led mesh curtain project in UK, by Torchvisual




Specifications

Flexible LED curtain display - M4 Specifications
    Model Name
    M4
    Pixel Pitch
    37.5mm / 56.25mm / 75mm (pixel pitch can be customized)
    Pixel Configuration
    4*SMD3535
    Panel Size
    0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
    0.98' x  15.75' / 1.48' x 23.62' / 1.97' x 31.50'
    Brightness
    5400nits / 2400nits / 1600nits  (Nationstar SMD3535)
    Transparency Rate
    55% / 75% / 85%
    Weight
    10.5 kg/sqm;  5.5 kg/sqm; 3.5 kg/sqm
    23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
    IP Rating(Front/Rear)
    IP66
    Refresh Rate
    1000 - 3000 Hz
    Scan Mode
    Static
    Max Power Consumption
    500 W/sqm; 300 W/sqm ; 150 W/sqm
    Color Processing
    16 bit
    Viewing Angle(H/V)
    140°/110°
    Operating Temperature
    -40~45°C
    Main Power Source
    AC 100-240V; 50/60Hz
    Input Voltage
    15V DC
    Humidity
    10~90%RH
    Life Time
    100,000 Hours

Accesories

▇ Video Controller
led video controller

▇ Slave Controller

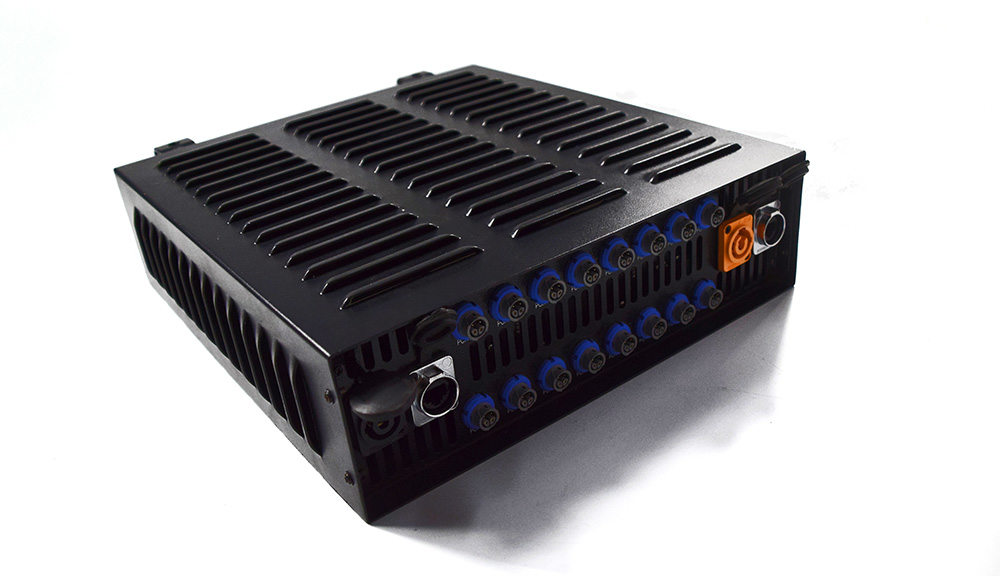

▇ Power Box
led curtain power

▇  Flightcase
led display package

▇ Wiring Diagram
led curtain diagram
